Concealed hinge application and adjustment

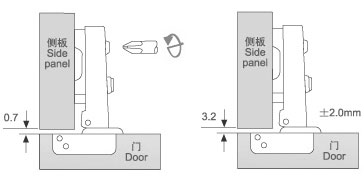

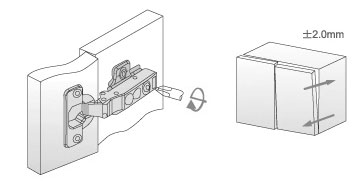

Door overlay anjustment

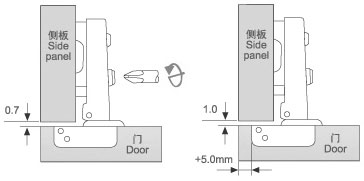

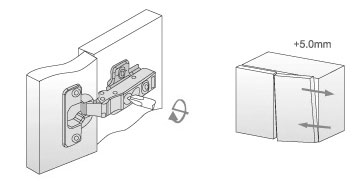

Depth adjustment

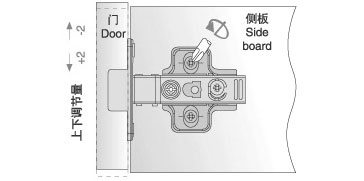

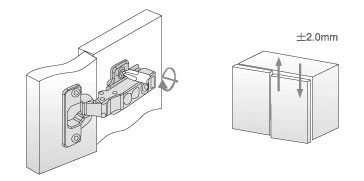

Height adjustment

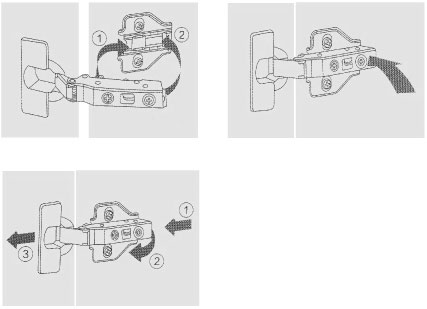

Assembly & Disassembly

Assembly step:

※First, slide all the hinges, from the front, onto the mounting plates then press lightly on each successive hinge until the arm latches onto the mounting plate with an audible click.

※The hinge arm is now securely clamped, via five points, with zero play. Doors are clipped on zipper style from top to bottom.

※Disassembly is carried out in the opposite direction from bottom to top.

Disassembly step:

※The hinge is unlatched by pressing lightly on latch which is hidden under the side am for safely reasons.

※he hinge arm is lifted off the mounting plate.

※The doors removed from the cabinet.
